Gizduino + Servo + LED

Hi,

This time we will be using the "mini" gizDuino. From the root word "mini" it is a small version of the more popular gizDuino X

Here are the parts needed :

gizduino Mini

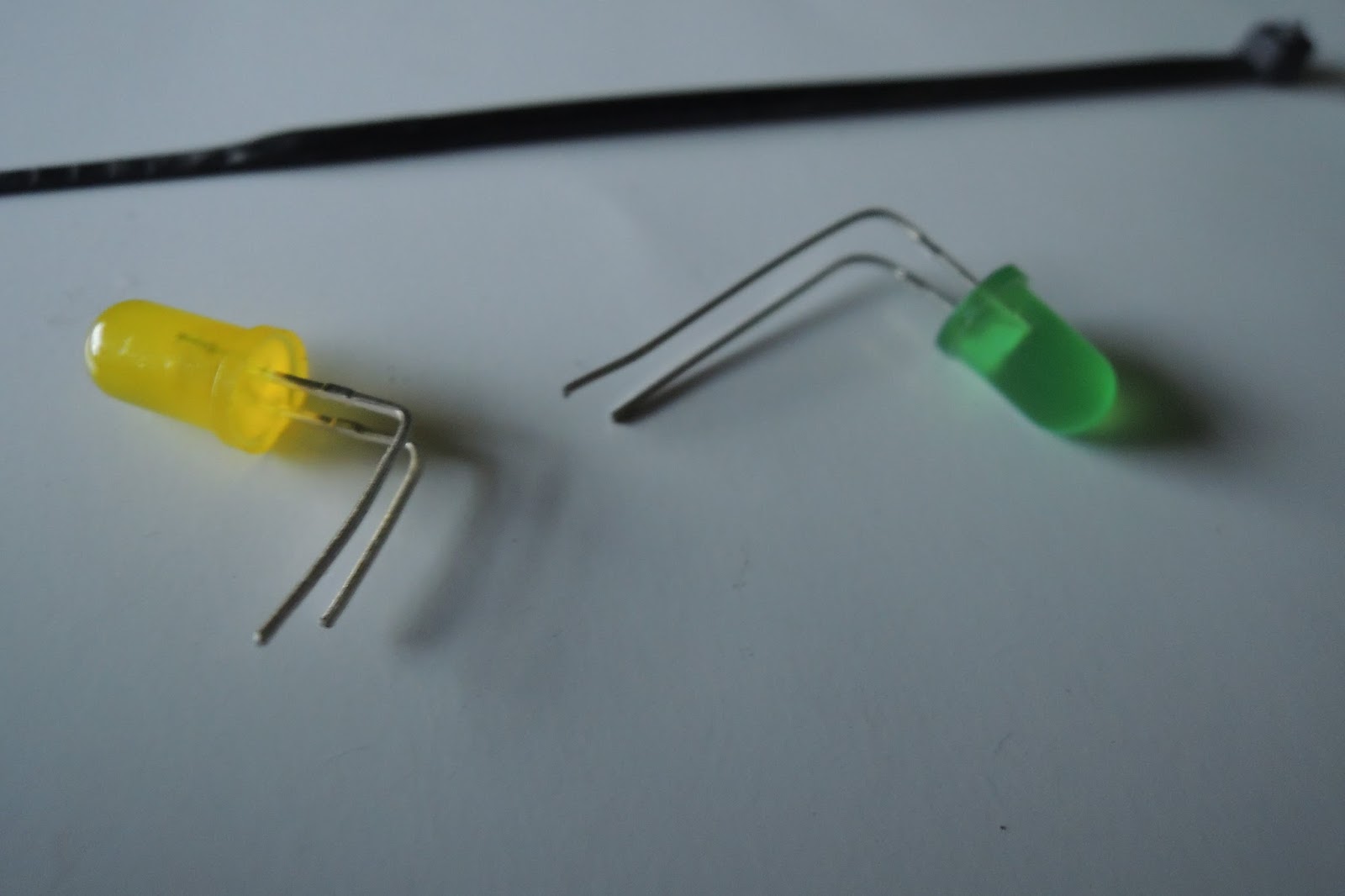

LEDs

Connecting Wires (Connector)

L angled or any pin header

Procedures :

For the servo Motor

1. Create a 3 pin connector (Red, Black, White)

2. Connect the Red to +5v and Black to Gnd

3. Connect the white to Pin 9 (For Servo Signal).

Connect the White wire to (Pin 9)

4.Connect the other end of connector to connector of the servo.

Brown=Ground, Red = +5v, Orange= Signal(to White)

For LEDs.

1. Get two pieces of 2Pin Connector .
2. Connect the 2pin Connector to 2 LEDs

3. Connect the two ground of 2 LEDS.

4.Connect the other end to gizDuino Mini ,
   Black -> Ground
   Red -> Pin 13
   Green -> Pin 12

5. The prototype is now ready ^_^

Next, we will upload the source code to GizDuino hardware

This is the source code :

#include <Servo.h>

Servo myservo;  // create servo object to control a servo
                // a maximum of eight servo objects can be created

int pos = 0;    // variable to store the servo position
int led1 = 13;
int led2 = 12;
void setup()
{
  myservo.attach(9);  // attaches the servo on pin 9 to the servo object
   pinMode(led1, OUTPUT);
      pinMode(led2, OUTPUT);
}

void loop()
{
  for(pos = 0; pos < 180; pos += 1)  // goes from 0 degrees to 180 degrees
  {                                  // in steps of 1 degree
    myservo.write(pos);              // tell servo to go to position in variable 'pos'
    delay(15);                       // waits 15ms for the servo to reach the position
    digitalWrite(led1, HIGH);
    digitalWrite(led2, LOW);
  }
  for(pos = 180; pos>=1; pos-=1)     // goes from 180 degrees to 0 degrees
  {
    myservo.write(pos);              // tell servo to go to position in variable 'pos'
    delay(15);                       // waits 15ms for the servo to reach the position
    digitalWrite(led1, LOW);
    digitalWrite(led2, HIGH);
  }
}

code credits to : BARRAGAN <http://barraganstudio.com> With modification ;)

Make sure you selected mini Gizduino .

Also , the USBAsp should be properly installed.

You can use this guide from E-gizmo :E-Gizmo Gizduino Guide

We will now upload the code...
1. Long Press the gizDuino Reset Button if the USBAsp is not detected.
2. From the File Menu, select Upload Using Programmer.

Here is the result :)
